Flameshield Tanks

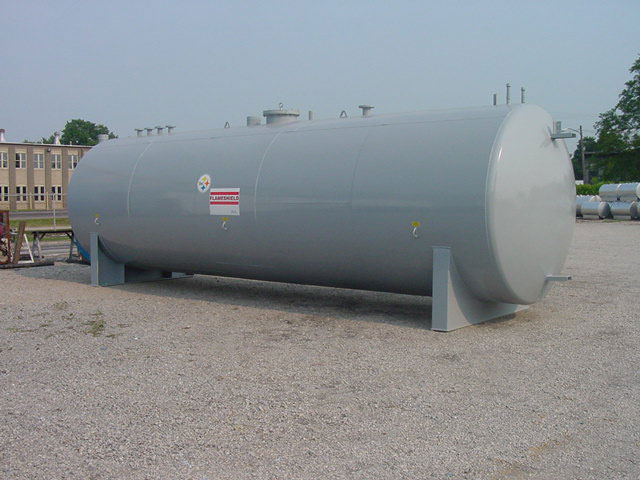

Southern Tank’s STI Flameshield® Tank is the economical choice for 2-hour fire tested above ground liquid storage. The Flameshield® Tank’s design incorporates a tight-wrapped double wall steel construction that can survive a 2-hour 2000° fire test.  Flameshield® has built-in secondary containment and interstitial monitoring capability.

Reliable Fire Protection That Meets Rigorous Standards

Each one of Southern’s Flameshield® Tanks is built to nationally recognized UL and Steel Tank Institute standards and is subject to strict quality control inspections. Every Flameshield® primary (inner) and secondary (outer containment) tank is tested for leaks in our manufacturing facility and may be tightness tested on site using standard testing methods. Here are some of the codes and standards that the Southern Flameshield® tank complies with:

• Southwest Research Institute SwRI 97-04 requirements – 2-hour 2000° Fire Test validates performance of non-insulated tanks.
• National Fire Protection Association (N.F.P.A.)
• UL 142 primary and secondary tanks
• STI Flameshield® Standard for Aboveground Tanks

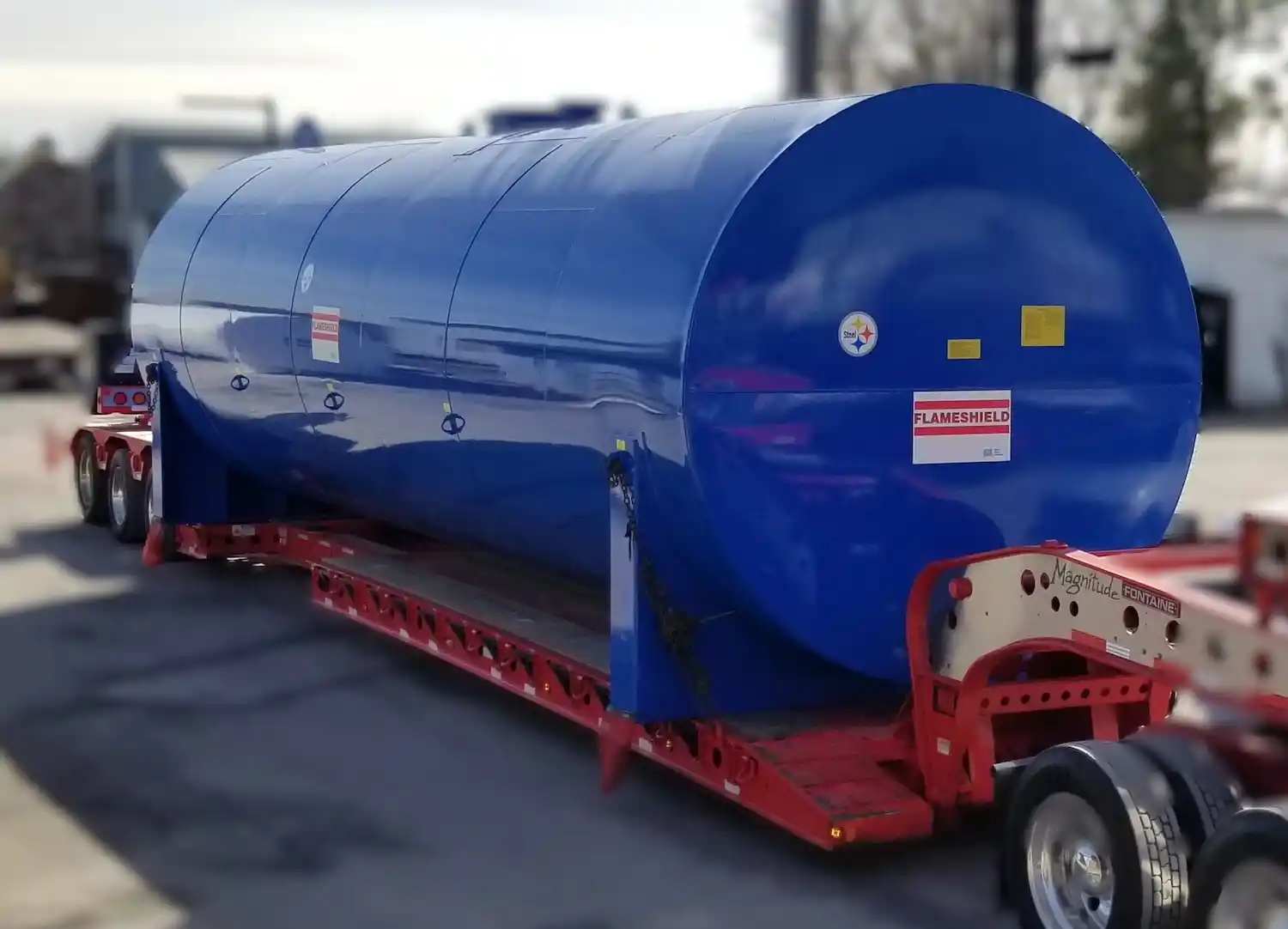

A variety of UL listed saddle and skid supports are available for the horizontal cylindrical Flameshield® tank. Vertical tanks can have flat or sloped bottoms, leg or skirt supports. Rectangular tanks have support options as well. Special openings, manways, interior linings, compartmentalization, and other custom requirements can also be incorporated to fit your specific needs.

Flexible Options for a Wide Range of Fuel Storage Needs

The Southern Tank STI Flameshield® tank is available in horizontal, vertical and rectangular designs and can be used in place of diking or remote impounding at many installation sites. The Flameshield® is compatible with a wide range of fuels and chemicals and is available in sizes ranging from 50 to 27,000 gallons (30,000 gal for vertical tanks). See standard capacities and dimensions for horizontal and vertical tanks.

Contact us today to tell us about your needs, or Request a Quote to your specifications.
