Supports

To ensure safety, stability, and regulatory compliance, we offer a comprehensive selection of UL-approved supports designed for both single wall and double wall tank systems.

Horizontal Tank Supports

For horizontal single wall and double wall tanks, we provide a variety of heavy-duty support options, including:

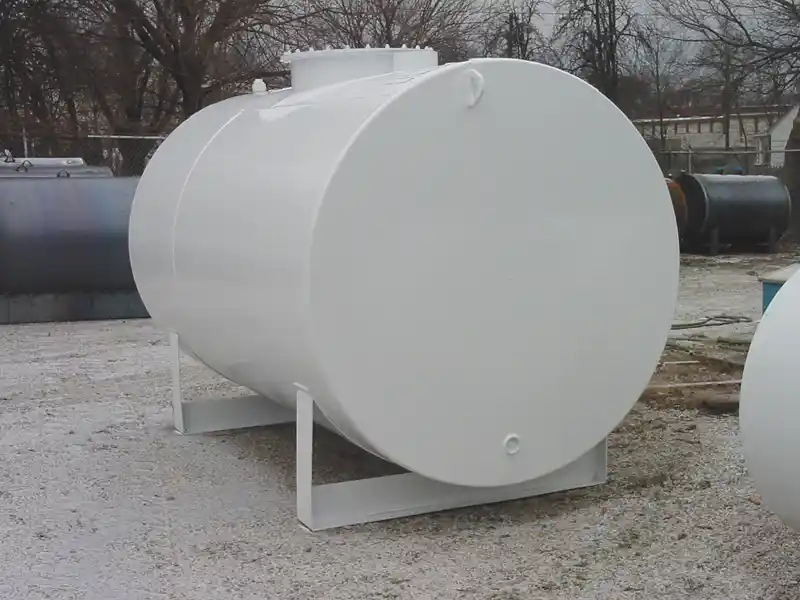

• Standard welded small tank saddles

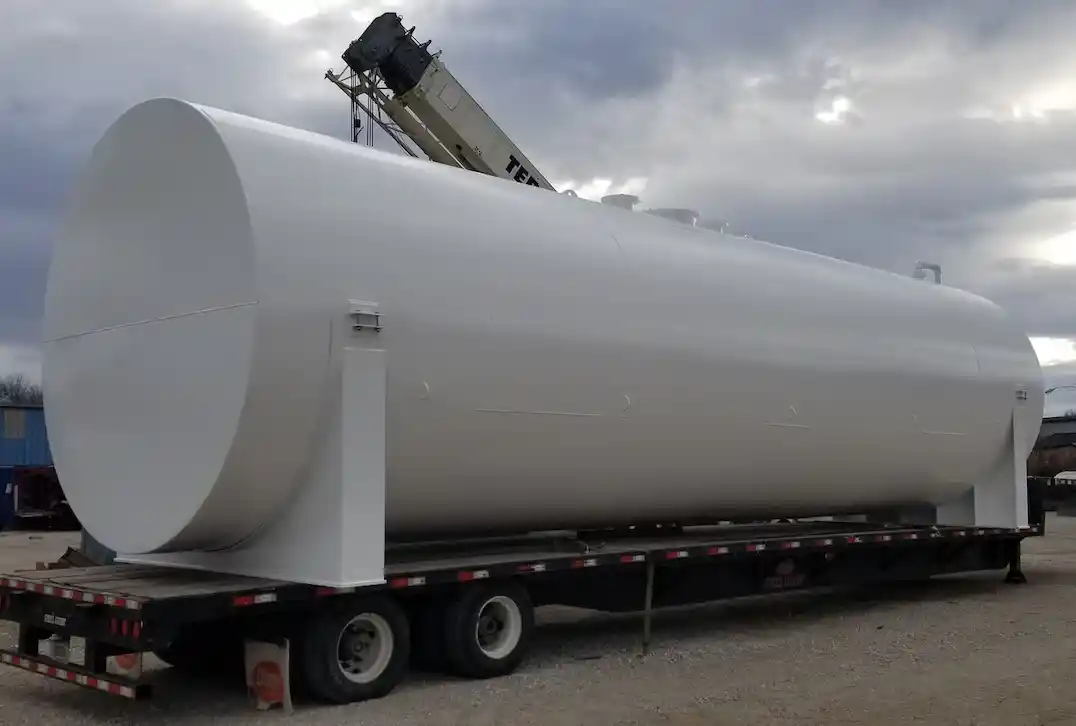

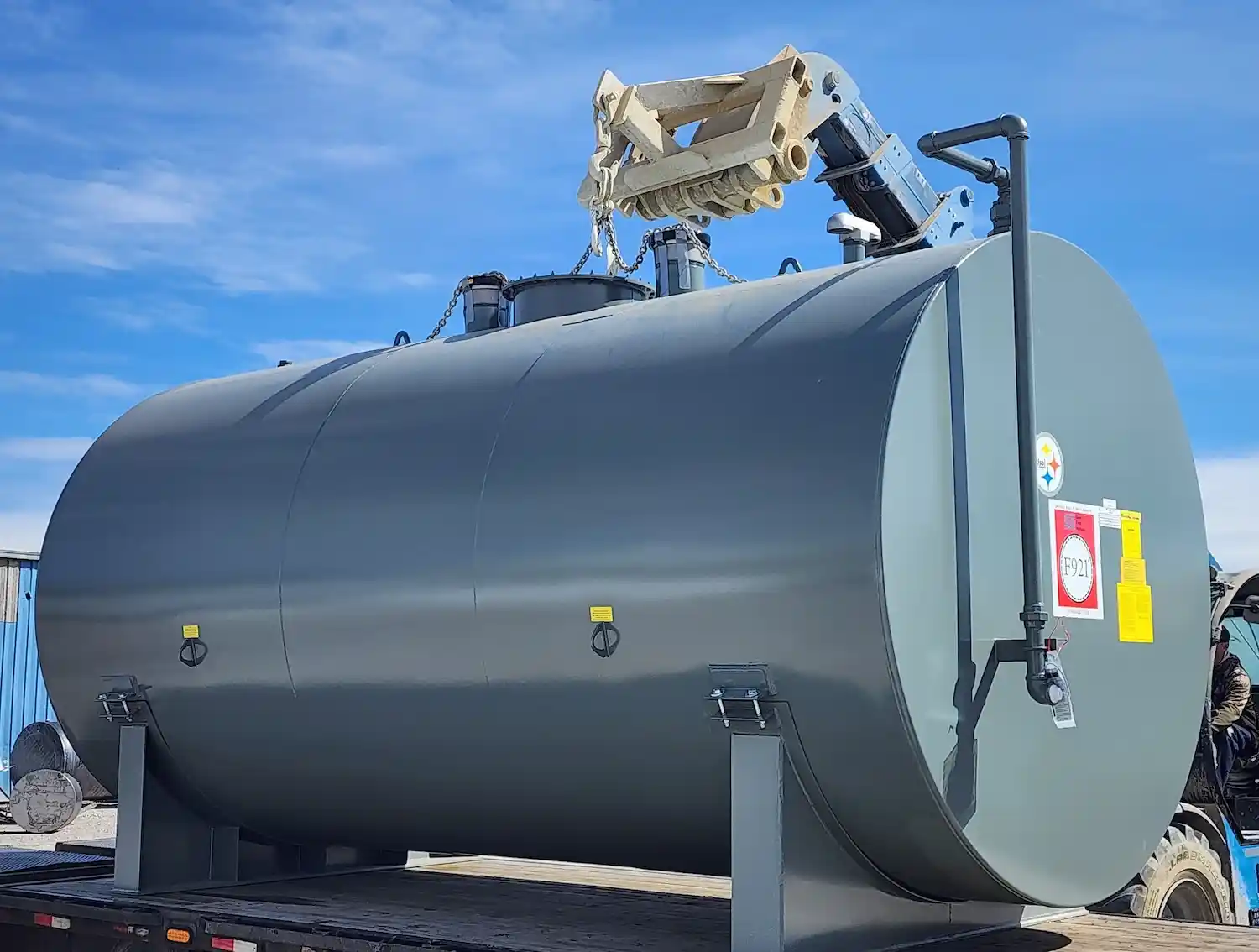

• Bolt-on saddles for large-diameter tanks (standard height is 6″, with other sizes available)

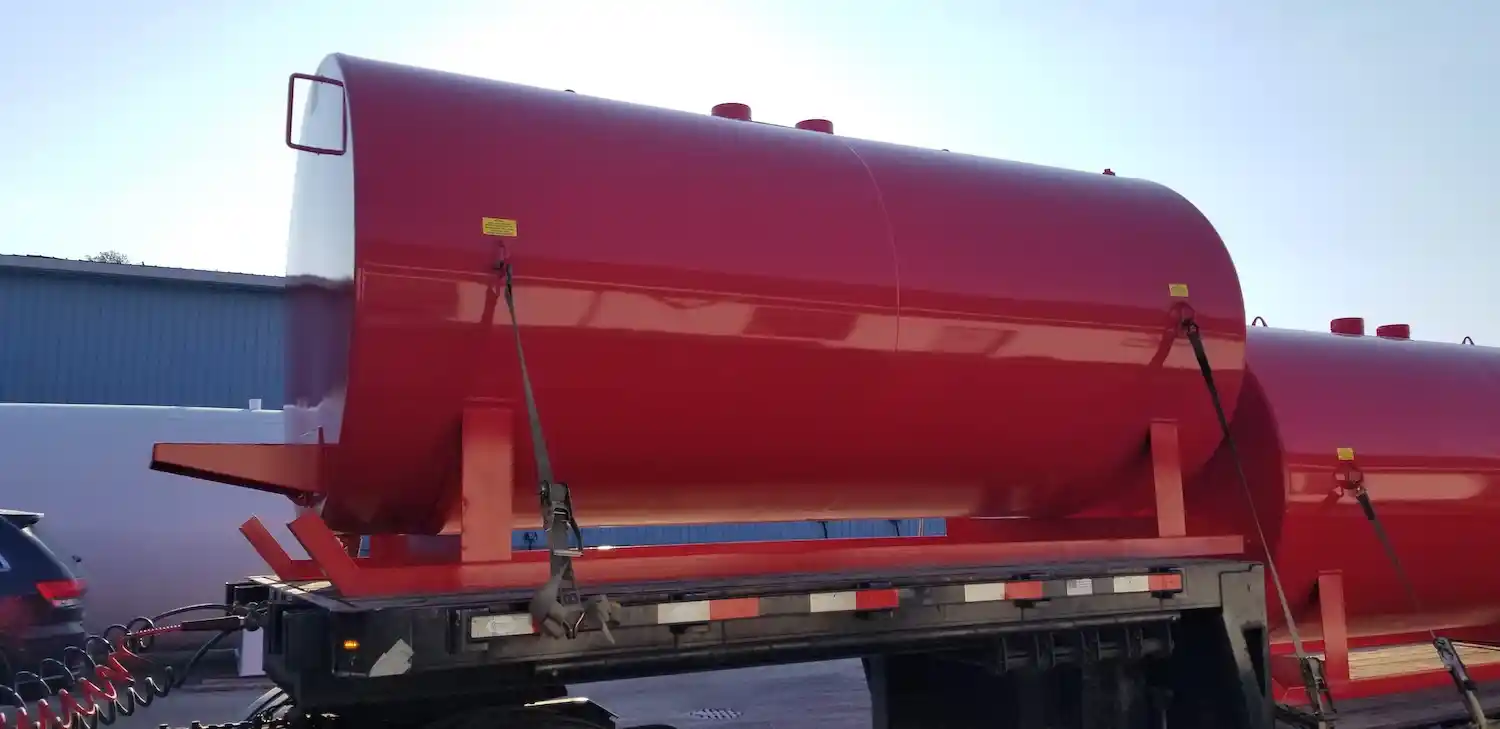

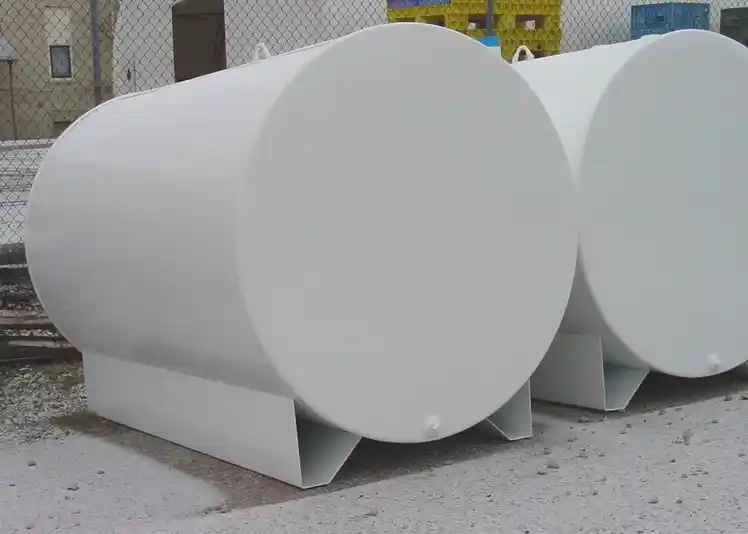

• Box skid runners that span the length of the tank, with optional pulling eyes and platforms

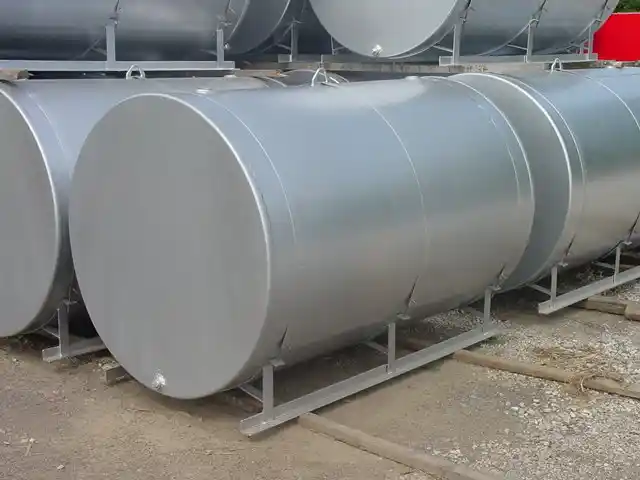

• Special angle iron runners for small tanks

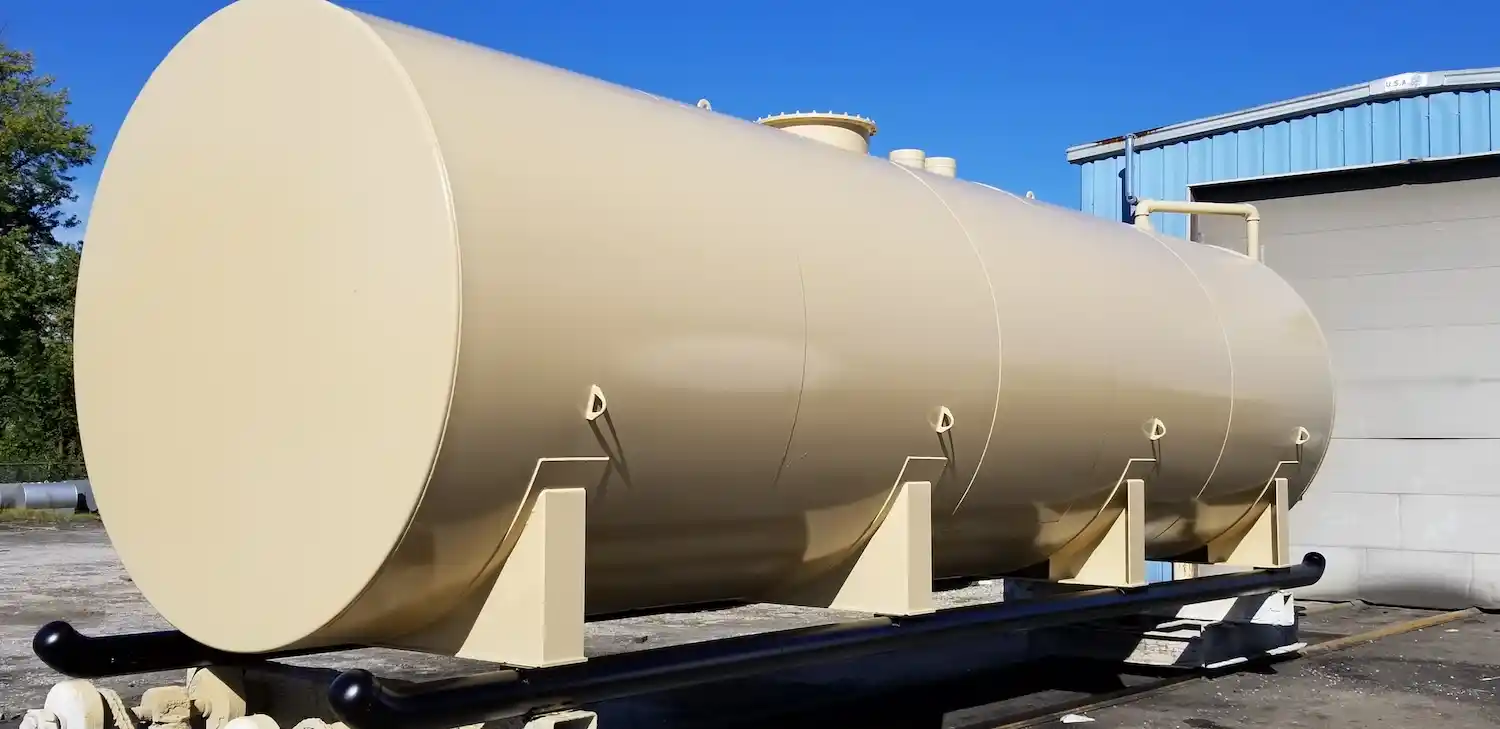

• Heavy-duty pipe skids for rugged, high-load applications
• Fork tube access ports can be added to both box skids and saddles for improved mobility

Rectangular Tank Supports

For rectangular tanks, we offer a selection of supports that keep the tank elevated and off the ground, including:

• Fork tubes
• Channel supports
• I-beam supports

These options help prevent ground contact and facilitate easy access for inspection and maintenance.

Vertical Tank Supports

For vertical single wall and double wall tanks, we offer:

• I-beam supports welded to flat-bottom tanks for elevation, allowing visual inspection underneath the tank
• For tanks with cone or dished bottoms, skirt bottoms or I-beam legs can be used to support the tank while allowing complete drainage
• Fork tubes can be welded to the bottom of small vertical tanks to create portable “tote” tanks

All support systems are engineered for durability, compliance, and long-term performance, ensuring reliable operation even in the most demanding environments.

Whether you’re installing a new tank system or upgrading existing infrastructure, our range of support solutions is designed to improve accessibility, maintenance, and overall tank safety.
