Vertical Steel Tanks
Southern Tank manufactures vertical storage tanks to both the UL 142 and API 650 standards. We shop build our single wall vertical tanks in capacities up to 35000 gallons. The maximum diameter of our vertical tanks is 12 feet with a minimum of 24″ diameter.
Southern vertical tanks are used to store a wide range of products including chemicals, alcohol, ethanol, biodiesel, bulk petroleum products, water (both potable and non-potable), liquid fertilizers, deicer, paints and coatings, inks, and many other industrial and commercial products. Additionally, our vertical tanks can be used to store dry bulk products such as sand, pelletized lime, and other materials. Southern vertical tanks are made from either carbon or stainless steel, and can be single wall, double wall (bottom and shell) or double bottom. Vertical tanks may also be fabricated as the fire-resistant Flameshield® or the fire-protected Fireguard®, both double wall constructions. A wide variety of custom exterior coatings and colors are available. Interior linings are optional to suit your specific product needs and compatibility. I-beam supports (see Tank Accessories) are available to help you comply with SPCC inspection requirements.
Southern Tank’s vertical tanks are manufactured to the UL 142 or API 650, standards for shop-built tanks. We build non-code vessels as well built per sound engineering standards. All tanks are leak tested per UL 142 recommended procedures. The majority of Southern vertical tanks are built with a flat bottom, but other options are available, including dished, cone or sloped bottoms. Leg or skirt supports can be incorporated as well and both can be designed to meet seismic zone and other load requirements.
Southern Tank also manufactures standard access ladders, OSHA caged ladders with platforms as required, handrails and toe-boards, stairways, and complete catwalk systems for tank farms – large or small.
Contact us today or request a quote for your specific project.
Vertical/Aboveground/Single Wall/U.L.
| CAPACITY (gals) | DIMENSIONS (dia x length) | GAUGE | APPROX WT (lbs) |
| 150 | 30″ x 4′-0″ | 12 ga shell, bottom, cone roof | 190 |
| 300 | 38″ x 5′-0″ | 12 ga shell, bottom, cone roof | 245 |
| 550 | 48″ x 6′-0″ | 12 ga shell, bottom, cone roof | 600 |
| 1,000 | 64″ x 6′-0″ | 10 ga shell, bottom, cone roof | 1180 |
| 1,500 | 64″ x 9′-0″ | 7 ga shell and cone roof, 1/4″ bottom | 1560 |
| 2,000 | 64″ x 12′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 1980 |
| 2,500 | 64″ x 15′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 2370 |
| 3,000 | 72″ x 14′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 2565 |
| 4,000 | 96″ x 11′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 3150 |
| 5,000 | 96″ x 13′-4″ | 3/16″ shell and cone roof, 1/4″ bottom | 3800 |
| 6,000 | 96″ x 16′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 4300 |
| 8,000 | 96″ x 21′-4″ | 3/16″ shell and cone roof, 1/4″ bottom | 5350 |
| 8,000 | 120″ x 14′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 4900 |
| 10,000 | 10′-6″ x 16′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 5950 |
| 12,000 | 10′-6″ x 18′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 6670 |
| 15,000 | 10′-6″ x 24′-0″ | 3/16″ shell and cone roof, 1/4″ bottom | 8050 |
| 20,000 | 10′-6″ x 31′-0″ | 1/4″ lower 7′-0″ of shell, 3/16″ remainder of shell and cone roof, 1/4″ bottom | 10100 |
| 25,000 | 12′-0″ x 30′-0″ | 1/4″ lower 6′-0″ of shell, 3/16″ remainder of shell and cone roof, 1/4″ bottom | 12200 |
| 30,000 | 12′-0″ x 35′-0″ | 1/4″ lower 11′-0″ of shell, 3/16″ remainder of shell and cone roof, 1/4″ bottom | 14200 |
Other tank sizes are available; call for details.
Vertical Aboveground/Double Wall/F921® & Flameshield®
| CAPACITY (gals) | DIMENSIONS (dia x length) | GAUGE | APPROX WT (lbs) |
| 300 | 38″ x 5′-0″ | 10 ga primary shell / 12 ga secondary shell 10 ga primary & secondary heads | 948 |
| 550 | 48″ x 6′-0″ | 10 ga primary shell / 12 ga secondary shell 10 ga primary & secondary heads | 975 |
| 1,000 | 64″ x 6′-0″ | 10 ga primary shell / 10 ga secondary shell 10 ga primary & secondary heads | 1,900 |
| 2,000 | 64″ x 12′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 3,383 |
| 3,000 | 72″ x 15′-0″ | 3/16″ primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 6,122 |
| 4,000 | 72″ x 19′-0″ | 3/16″ primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 7,024 |
| 5,000 | 96″ x 13′-4″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 8,256 |
| 6,000 | 96″ x 16′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 9,428 |
| 8,000 | 120″ x 14′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 10,750 |
| 10,000 | 10′-6″ x 16′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 12,400 |
| 12,000 | 10′-6″ x 18′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 14,100 |
| 15,000 | 10′-6″ x 24′-0″ | 7 ga primary shell / 10 ga secondary shell 1/4″ primary & secondary bottom heads / 3/16″ roof | 16,250 |
| 20,000 | 10′-6″ x 31′-0″ | lower 7′-0″ primary shell is 1/4″, balance of primary shell is 3/16″, lower 7′-0″ of secondary shell is 3/16″, balance of secondary shell is 10 gauge, 1/4″ primary & secondary bottom heads, 3/16″ roof | 20,165 |
Other tank sizes are available; call for details.

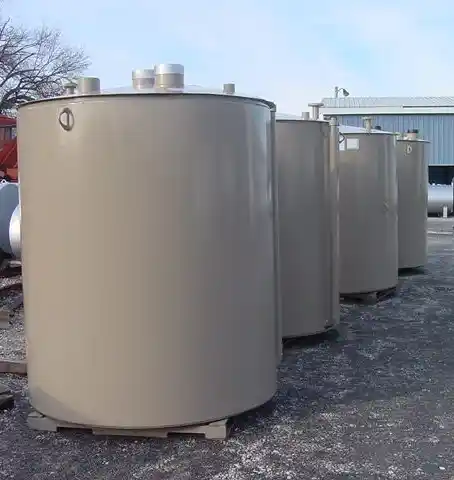

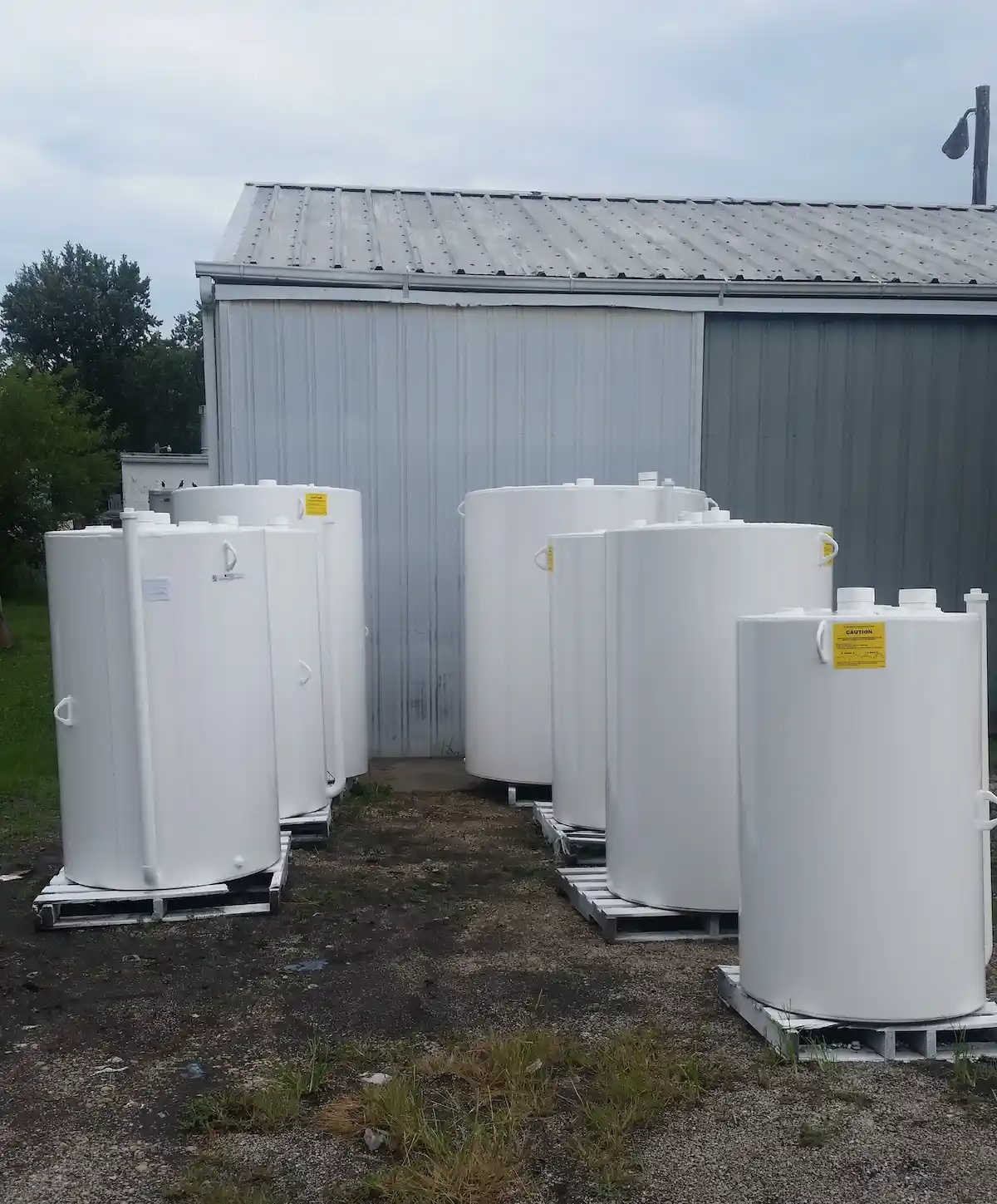

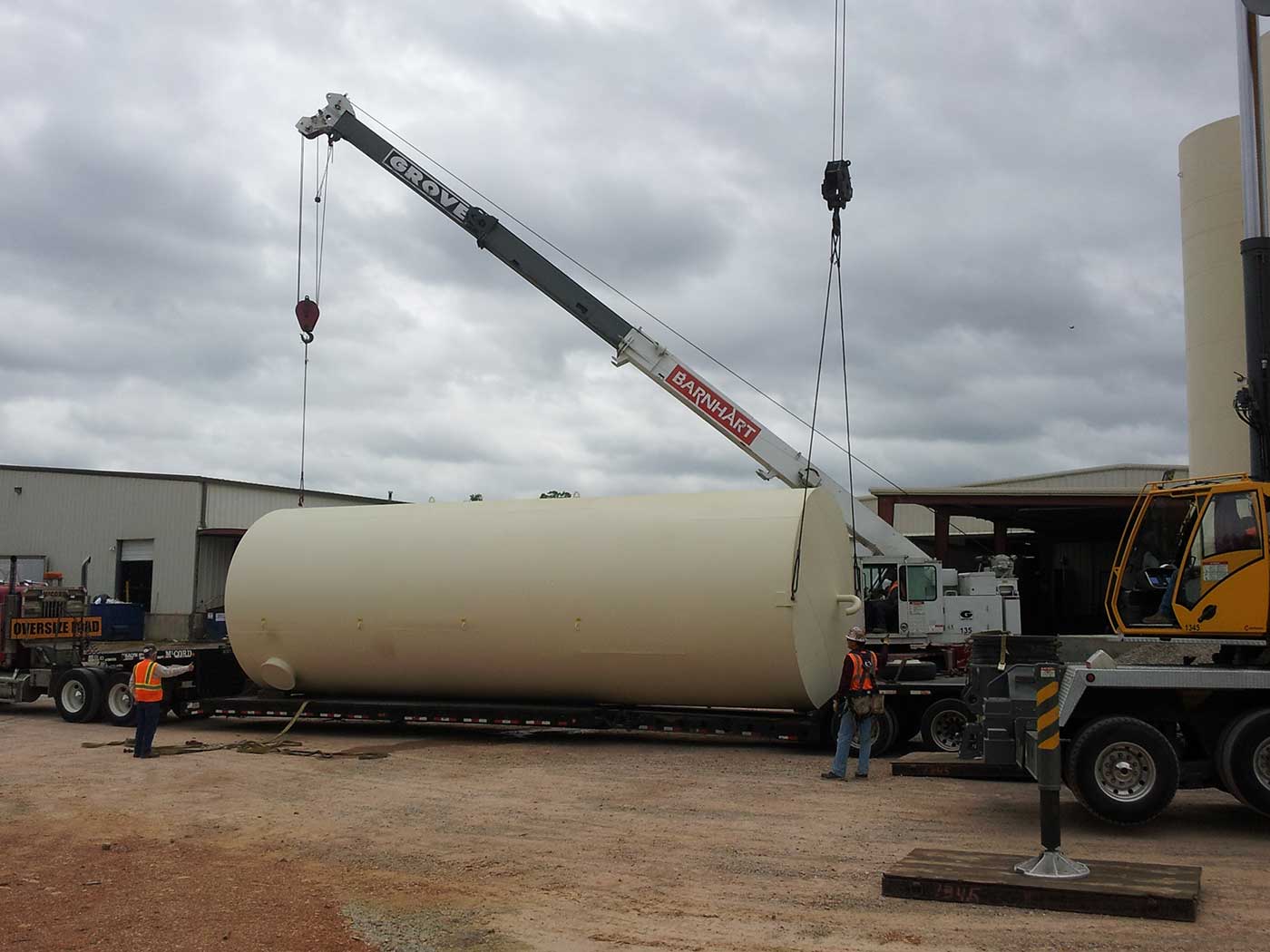

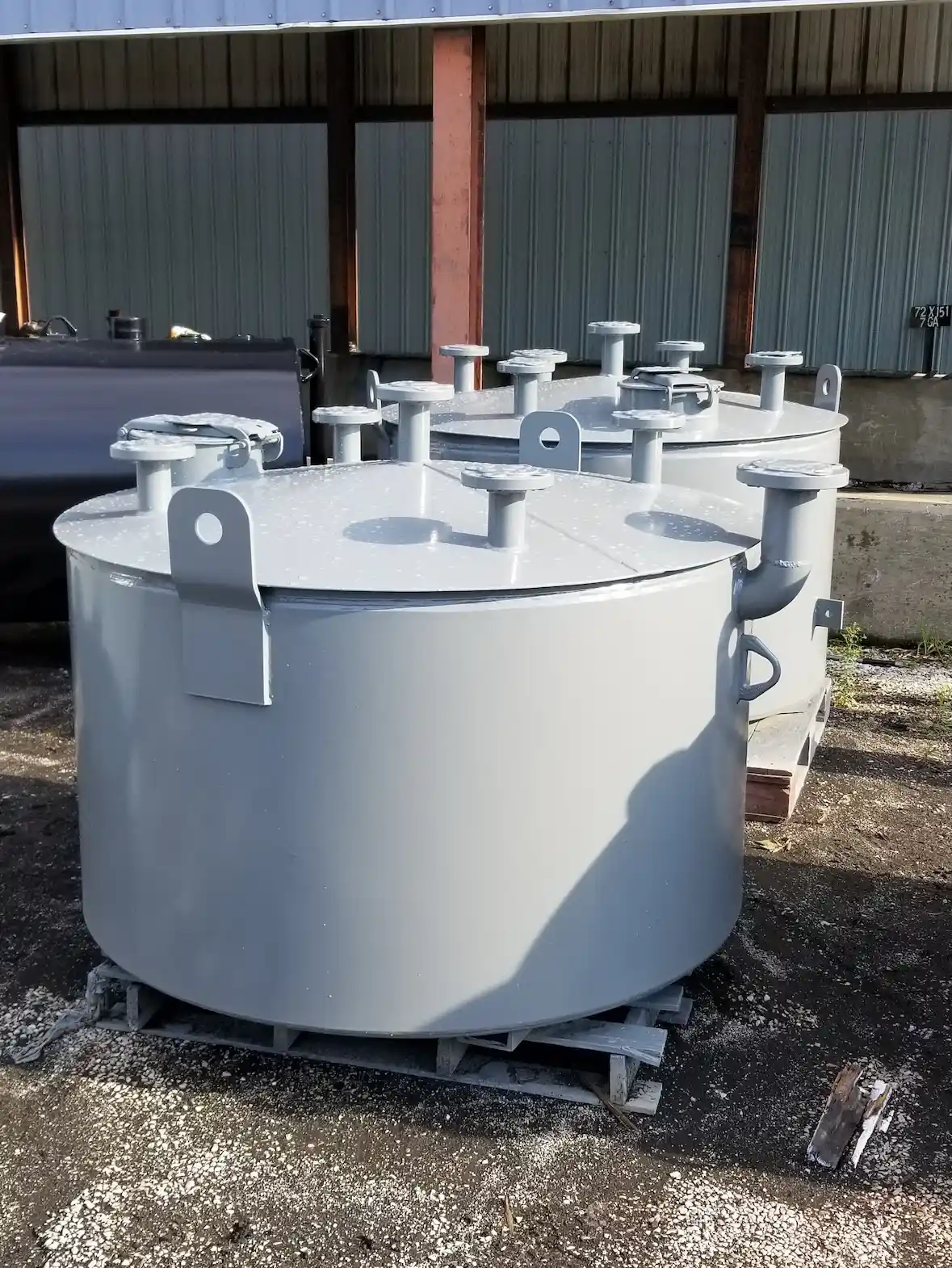

PHOTO GALLERY
